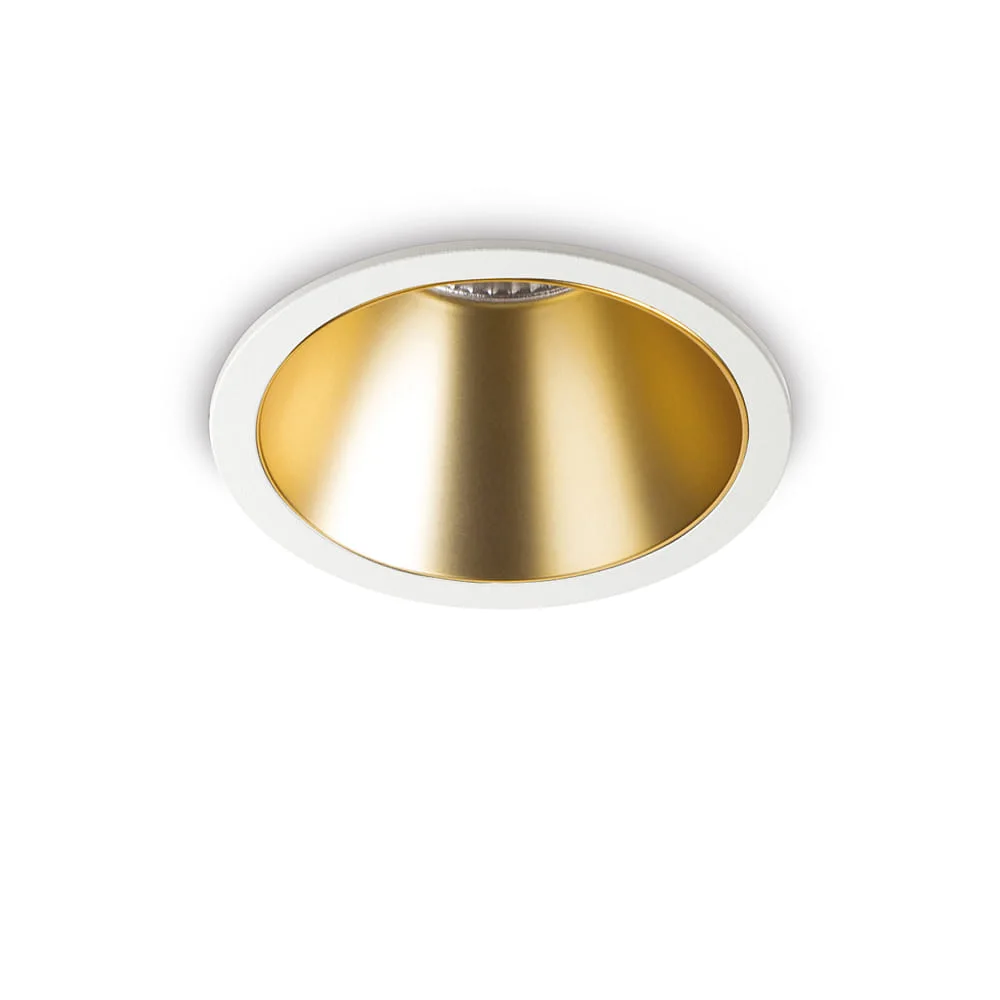

Ideal Lux Ceiling recessed luminaire GAME TRIM ROUND 120MM round, UGR < 19, switchable IP40/IP20, 1680 lm
The GAME TRIM ROUND 120MM LED recessed ceiling light by Ideal Lux leaves only a ring 12 cm in diameter visible, while the die-cast aluminium body sinks 10.5 cm into the ceiling, suited to material thicknesses from 0.1 to 2 cm. With 20 W it produces 1680 lm at 3000 K and a 27° beam; a UGR value below 19 limits glare and the colour rendering exceeds 90 Ra, useful in shops, offices and reception desks. The driver is a switchable ON/OFF type: dimming requires a suitable external constant current driver (500 mA, >20 W), ordered separately. Rated IP40/IP20, energy class F.
Product details
| Manufacturer | Ideal Lux |
|---|---|
| Materials | die-cast aluminium |
| Dimensions | total-Ø / H: 12/10,5 cm, visible part-Ø / B: 12/0,5 cm, min. material thickness-T: 0,1 cm, max. material thickness-T: 2 cm |
| Cut-out | Ø 11 cm |
| Weight | 0.65 kg |
| Number of bulbs | 1 |
| Power | 20 W |
| Luminous flux | 1680 lm |
| Colour temperature | 3000 K |
| Colour rendering | 1A |
| Dimmable | no |
| Voltage | 220-240 V |
| IP rating | IP40 / IP20 |
| Protection class | 2 |
| Energy class | F |
Do you want more exclusivity for your project?
You will have a discount reserved just for you!
We provide you with other tailor-made customizations for metal, glass, alabaster, wood finishes, changes in dimensions, a lighting consultancy included and request BIM, 3D and image files.
-
PRODUCTION TIME
This combination is not available: please choose another finish or size.
Technical documents1 document
Manual and installationIdeal Lux Ceiling recessed luminaire GAME TRIM ROUND 120MM round, UGR < 19, switchable IP40-IP20, 1680 lm - Installation instructions.pdf · PDF 1.7 MBDownload| PRODUCTION TIME | HANDCRAFTED TO ORDER - 21 Days |
